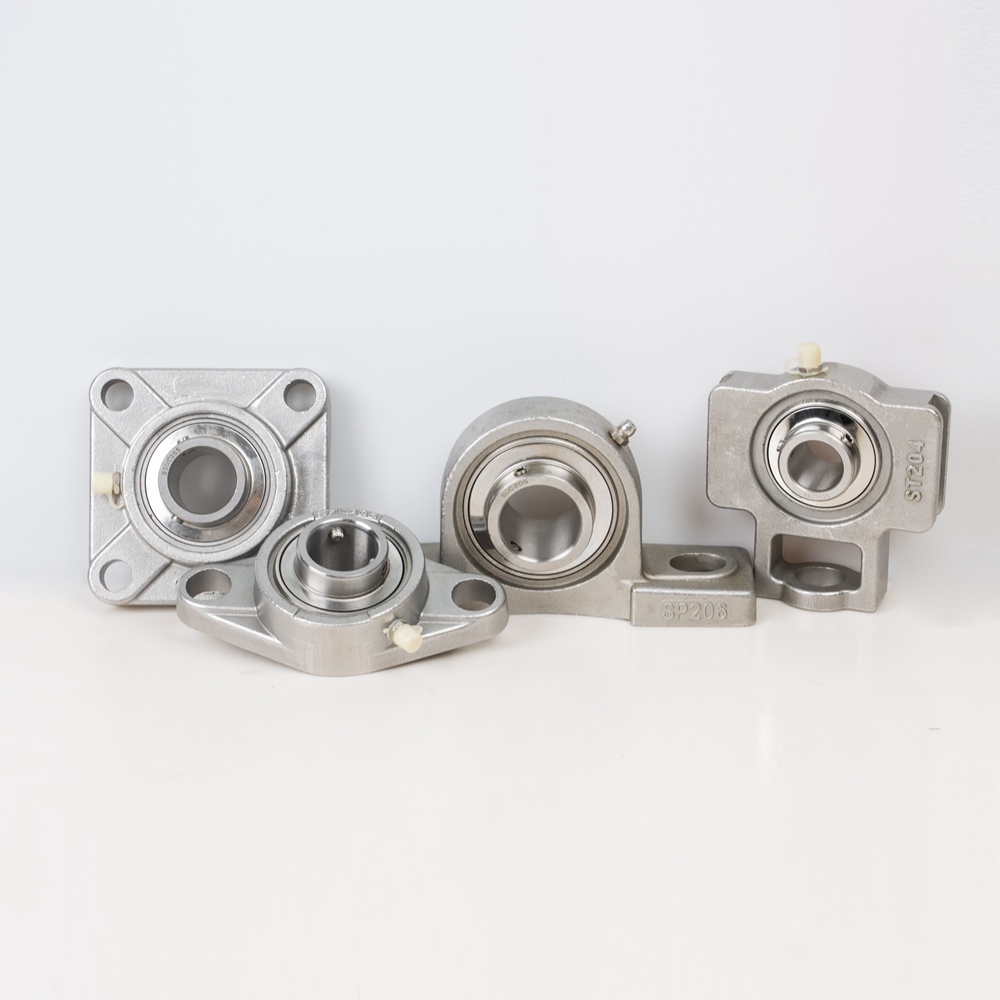

Pillow Blocks Stainless steel series
| Name: | Pillow Blocks |
| Specification Range: | gray iron castings, steel castings, stainless steel |
| Cage material: | UC201-UC220, UC305-UC330, UCP201-UCP220, UCF201-UCF220, UCFL201-UCF215, UCT204-UCT215, UCPA203-UCPA215, UCPH203-UCPH215, UCFC204-UCFC220, UCHA204-UCHA215, UCFA203-UCFA215, UCFB203-UCFB215, UCP305-UCP330, UCF305-UCF330 |
Menu
Product Description
Pillow blocks are a type of bearing housing that is commonly used to support rotating shafts in machinery and equipment. Pillow blocks made of stainless steel offer several advantages over other materials, such as increased corrosion resistance, durability, and strength.
Stainless steel pillow blocks are typically made of 300 series stainless steel, which is a high-quality material known for its resistance to corrosion, heat, and chemical damage. These properties make stainless steel pillow blocks ideal for use in harsh environments or where regular maintenance may be difficult or impossible.
Stainless steel pillow blocks also offer excellent strength and durability, making them suitable for heavy-duty applications that require high load-bearing capacity and resistance to wear and tear. Additionally, stainless steel pillow blocks are easy to clean and maintain, which can help prolong the life of the bearings they support.
Insert bearing with housing is a bearing unit that combines a rolling bearing with a housing. Most of the outer spherical bearings make the outer diameter into a spherical surface and are installed together with imported bearing housings with spherical inner holes. They have various structural forms, good versatility and interchangeability.
At the same time, this type of bearing also has a certain degree of self-alignment in design, is easy to install, has a double-structure sealing device, and can work in harsh environments. Bearing housings are generally formed by casting. Commonly used seats include vertical seat (P), square seat (F), boss square seat (FS), boss circular seat (FC), rhombus seat (FL), ring seat (C), slider seat (T )Wait.
Product Usage:
Insert spherical bearings with housings are high-precision component products composed of grease-sealed deep groove ball bearings and housings of various shapes. The bearing assembly can be directly installed on the main body of the mechanical device through several bolts, has the function of self-alignment, and can replenish grease, etc., and is a product that is very easy to install and use.
1.Corrosion Resistance: Stainless steel pillow blocks are highly resistant to corrosion and rust, making them ideal for use in harsh environments where regular maintenance may be difficult.
2.Durability: Stainless steel pillow blocks are extremely durable and resistant to wear and tear, making them suitable for heavy-duty applications.
3.Strength: Stainless steel pillow blocks are strong and able to withstand high loads, making them ideal for use in applications that require high load-bearing capacity.
4.Heat Resistance: Stainless steel pillow blocks are able to withstand high temperatures, making them suitable for use in high-temperature applications.
5.Non-Magnetic: Stainless steel pillow blocks are non-magnetic, making them ideal for use in applications where magnetic interference can cause problems.
6.Easy to Clean: Stainless steel pillow blocks are easy to clean and maintain, which can help prolong the life of the bearings they support.
7.Aesthetic Appeal: Stainless steel pillow blocks have an attractive appearance that is suitable for use in a variety of industries, including food processing and pharmaceuticals.
Related Products
FAQ
Bearing steel is the steel used to make balls, rollers and bearing rings. Bearing steel has high and uniform hardness and wear resistance, as well as a high elastic limit. The uniformity of the chemical composition of the bearing steel, the content and distribution of non-metallic inclusions, and the distribution of carbides are very strict, and it is one of the most stringent steel types in all steel production. In 1976, the International Organization for Standardization ISO incorporated some common bearing steel grades into international standards, and divided bearing steel into 17 categories: fully hardened bearing steel, surface hardened bearing steel, stainless bearing steel, and high temperature bearing steel. steel number. Bearing steel is mainly used to manufacture rolling elements and rings of rolling bearings. Since the bearing should have the characteristics of long life, high precision, low calorific value, fast speed, good rigidity, low noise, and high wear resistance, the bearing steel is required to have: high hardness, uniform hardness, high elastic limit, and high contact fatigue. Atmospheric lubricant strength, necessary toughness, certain hardenability and corrosion resistance. In order to meet the above performance requirements, the uniformity of the chemical composition of the bearing steel, the content and type of non-metallic inclusions, the particle size and distribution of carbides, and decarburization are strictly required. Bearing steel generally develops in the direction of high quality, high performance and diversification. Bearing steel is divided into high carbon chromium bearing steel, carburized bearing steel, high temperature resistant bearing steel, stainless steel bearing steel and special bearing material according to characteristics and application environment.
Bearings are parts that support the shaft, used to guide the rotational movement of the shaft, and bear the load transmitted from the shaft to the frame. Bearings are widely used and demanding supporting parts and basic parts in the machinery industry. They are the supporting components of the rotating shafts or movable parts of various machines, and are also the supporting components that rely on the rolling of rolling bodies to realize the rotation of the main engine. Known as mechanical joints.
Compared with ordinary bearings, high temperature bearings have high temperature resistance up to 500°C or 800°C, greater bearing capacity, oxidation and corrosion resistance, high hardness and wear resistance, strong impact and bite resistance, smooth and shiny appearance, self-lubricating, low There is no lubricant for those with high speed, the load is 1.4 times that of ordinary bearings, and the average life is more than five times that of ordinary bearings. In addition to being different in performance and material, the expression of the model is also different.
The parts of the bearing are made of bearing steel and subjected to high-temperature tempering treatment, and the post code is in accordance with the regulations of JB/T2974 (the parts have been subjected to high-temperature tempering treatment, and the working temperature can reach 150C°, and the code is /SO; the sh07 parts have been subjected to high temperature After tempering treatment, the working temperature can reach 200°C, and its code is /S1; after high-temperature tempering, the working temperature can reach 250°C, and its code is /S2; after high-temperature tempering, the working temperature It can reach 300°C, and its set code is /S3; after high temperature tempering treatment, the working temperature can reach 350°c, and its set code is /S4).
2. The parts of the bearing are made of heat-resistant steel, and its postcode is in accordance with the regulations of JB/T2974 (the material is Cr4Mo4V, and its postcode is /HN; the material is Cr14Mo4, and its postcode is HN1; the material is Cr15Mo4V, and its The postcode is /HN2; the material is W18Cr4V, and the postcode is /HN3).
1. Sweden SKF (SKF Group was founded in 1907, the world’s leading supplier of rolling bearings, SKF Group China Co., Ltd.).
2. Japan’s NSK (in 1916, it was the first manufacturer in Japan to design and produce bearings, Nippon Seiko Co., Ltd.). 3. Japan KOYO (Koyo Electronics (Wuxi) Co., Ltd., a leading enterprise in the field of bearings, automobile power driving and mechanical equipment).
3. Germany FAG-INA (Germany Schaeffler Group is a global leader in the production of rolling bearings and linear motion products).
4. Japan NTN (founded in 1918, NTN NTN is one of the largest bearing manufacturers in the world).
